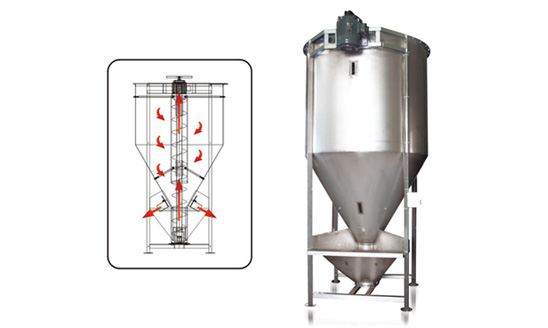

Suitable for raw material mixing in similar size and proportion of granule

• Suitable for preceding or succeeding process equipment of injection / extrusion
• Small horse power but high mixing efficiency
• Mixing range: 200 ~ 2000kg (Customized design and manufacture are available)
• Specification

• Model	Feed-In Capacity (L/hr)	Mixing Weight	HP	Dimension (L×W×H)
  TY-VBM200	340 L	200 kg	2HP	1100 mm × 860 mm × 2100 mm
  TY-VBM300	500 L	300 kg	3HP	1280 mm × 990 mm × 2240 mm
  TY-VBM500	830 L	500 kg	3HP	1580 mm × 990 mm × 2400 mm
  TY-VBM750	1250 L	750 kg	3HP	1600 mm × 1250 mm × 2400 mm
  TY-VBM1000	1680 L	1000 kg	5HP	1920 mm × 1540 mm × 2950 mm
  TY-VBM1500	2500 L	1500 kg	5HP	2060 mm × 1660 mm × 3250 mm
  TY-VBM2000	3400 L	2000 kg	7.5HP	2260 mm × 1900 mm × 3400 mm

• ※　Specification and design are subject to change without prior notice. Please contact us if you have any question.
